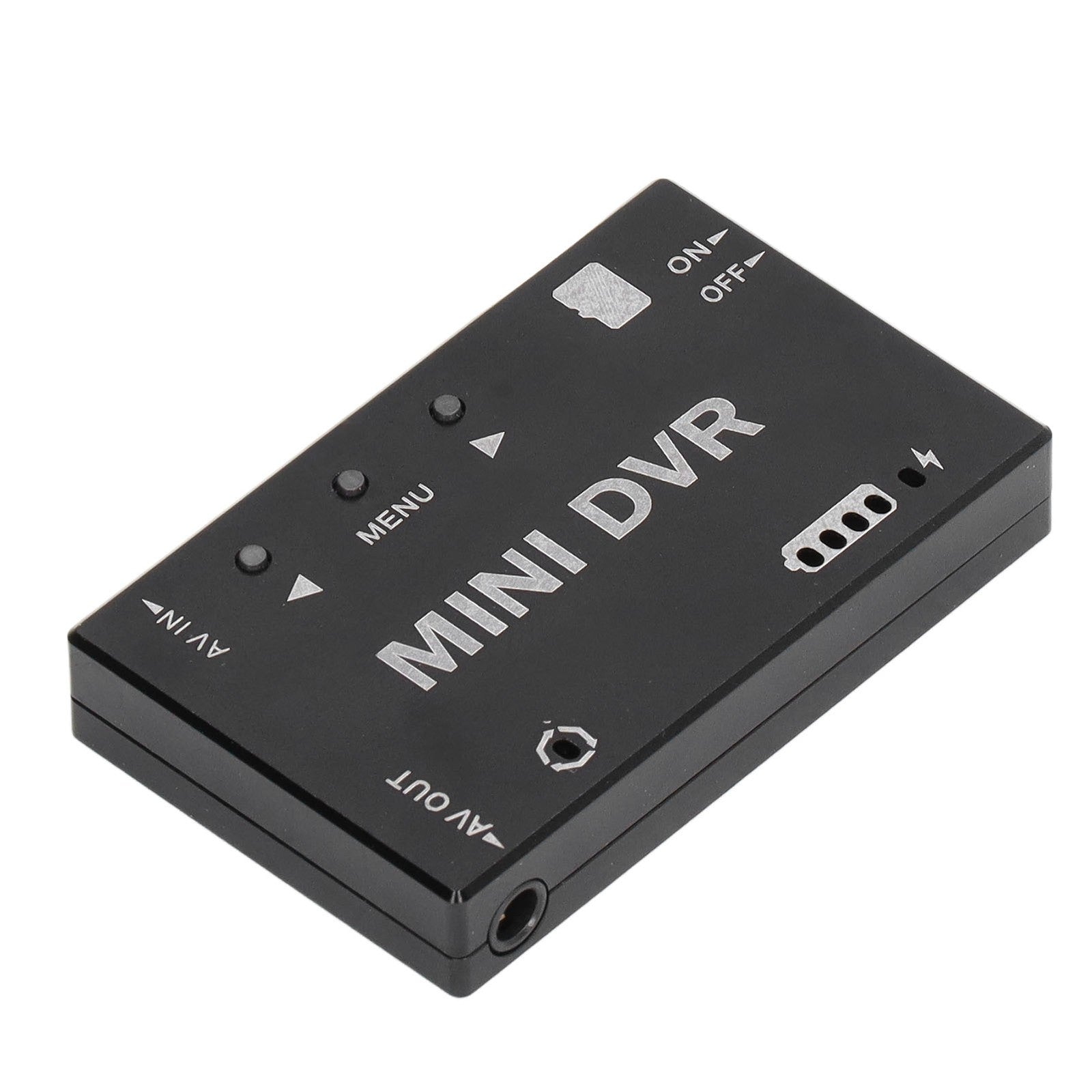

MiniDVR FPV Recorder – Compact Tapeless Video Recorder for Camcorders – AVI Output, Built-In Battery

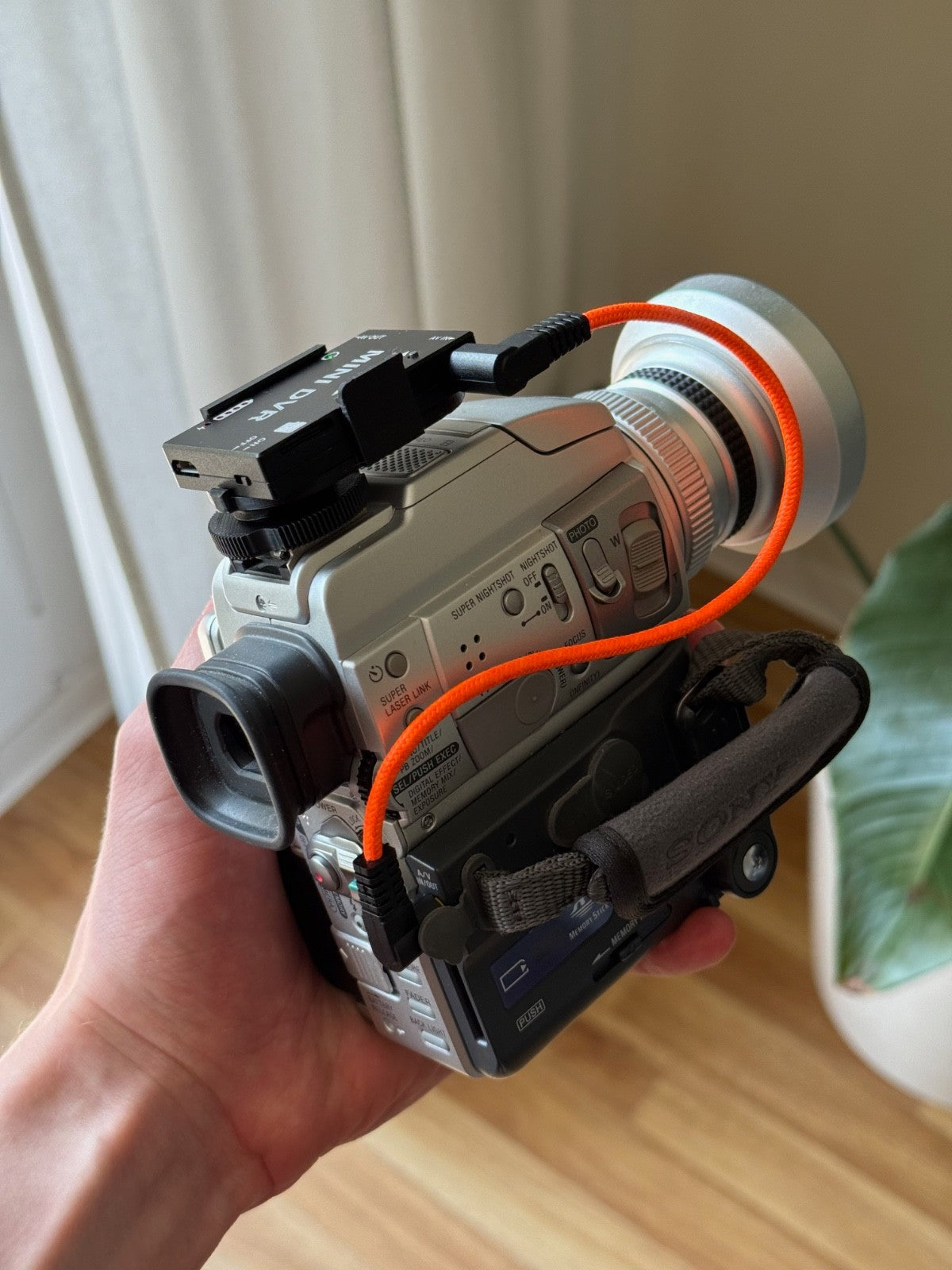

The MiniDVR FPV Recorder is a compact and lightweight video recording device, ideal for use in tapeless camcorder setups. It connects directly via A/V (3.5 mm jack) and records video signals from analog camcorders (e.g. MiniDV, Hi8, VHS-C) to a microSD card in AVI format.

This recorder is a great entry-level option for users looking to digitize or record without tapes — especially when paired with custom A/V cables.

Important Note:

While video recording works reliably, the audio signal quality is poor. The device tends to record audio with noticeable noise and distortion. In sample videos, audio is present but clearly not suitable for professional use. For video-only capture, it’s a solid and budget-friendly solution.

Key Features:

• Supports NTSC/PAL input via 3.5mm A/V jack
• Records in MJPEG format with selectable resolution: VGA / D1 / HD (up to 1280×720)
• Saves files in .AVI format for easy playback and editing
• Loop recording: choose 10, 20, or 30-minute segments
• Built-in rechargeable battery (3.7V / 400mAh) – up to 2h runtime
• MicroSD support up to 32GB (Class 10 recommended)
• Playback via CVBS output – connect to monitor for direct viewing
• 11-language menu system

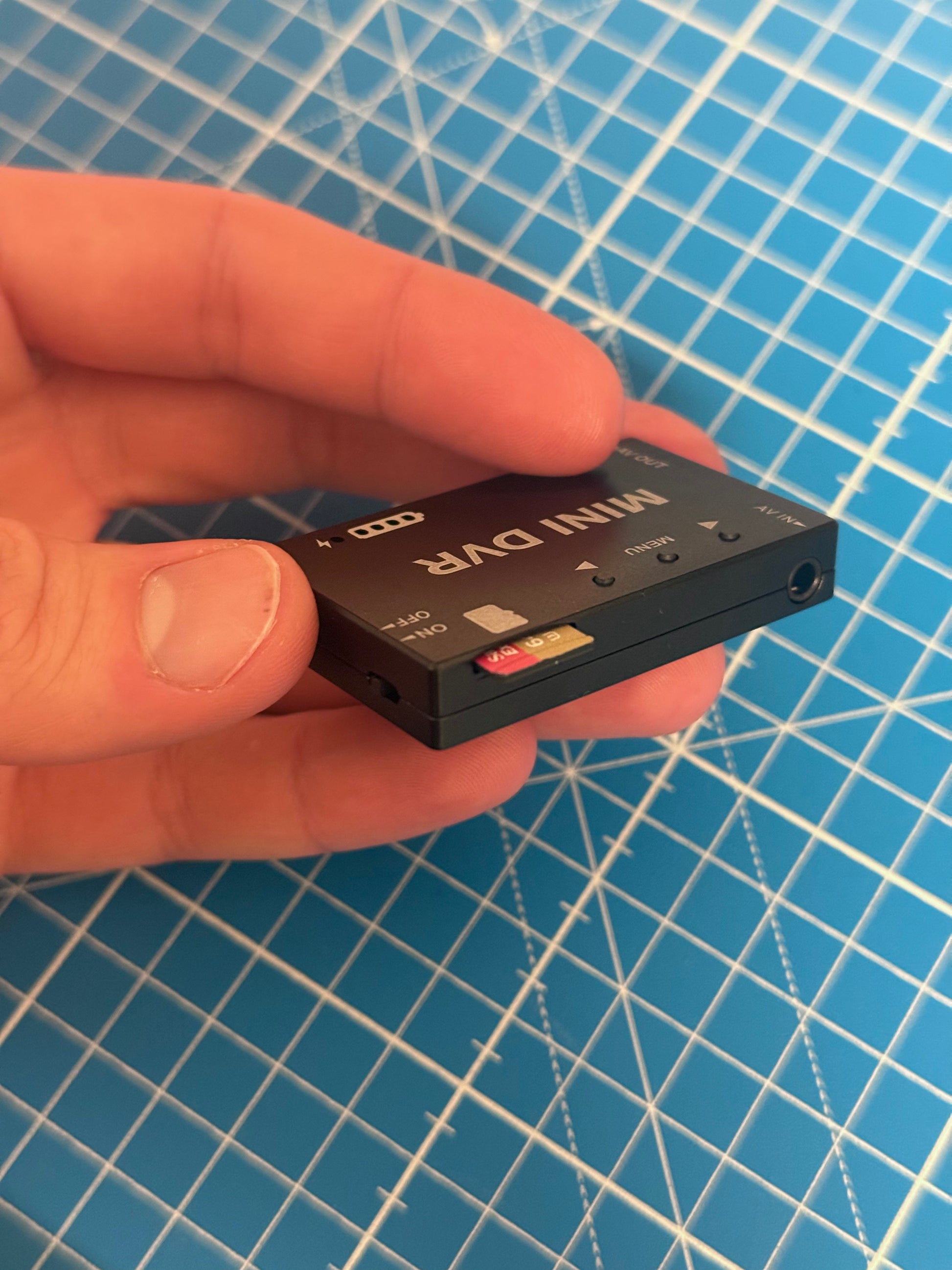

• Compact CNC aluminum housing

Technical Specs:

• Dimensions: 53 × 33 × 9 mm
• Weight: 24.5 g
• Power: 5V via Micro-USB (500 mA)
• Operating Temp: -10°C to 60°C
• Audio I/O: 3.5 mm AV jack
• Video: CVBS input/output (analog)
• Battery Life: 1.5 – 2 hours per charge

What’s Included:

• 1× MiniDVR FPV Recorder
• (A/V cable and SD card not included)

This device is best suited for camcorder owners focused on video recording only, who want a simple and portable tapeless setup. For users who require clean audio, we recommend looking into higher-end recorders like the ImmersionRC Powerplay.
